Fish Skinning Machine

The commercial fish skinning machine is a specialized piece of equipment for fish processing, primarily used to remove the skin from various fish species, thereby improving the efficiency of fish meat processing and enhancing the quality of the fish meat.

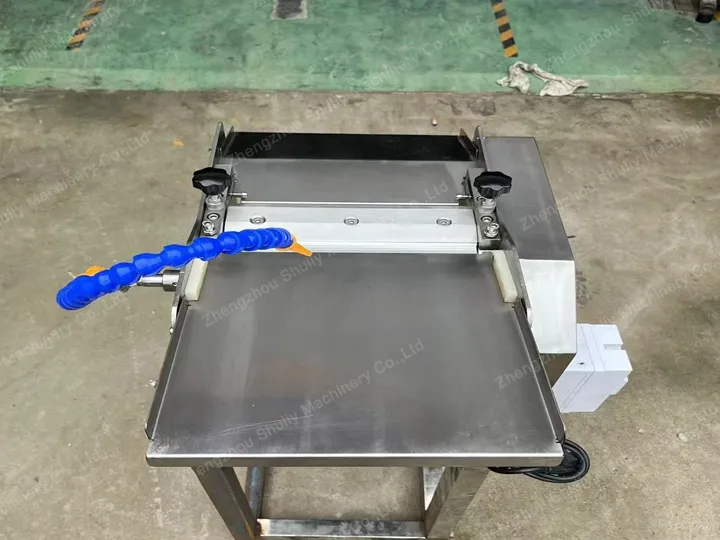

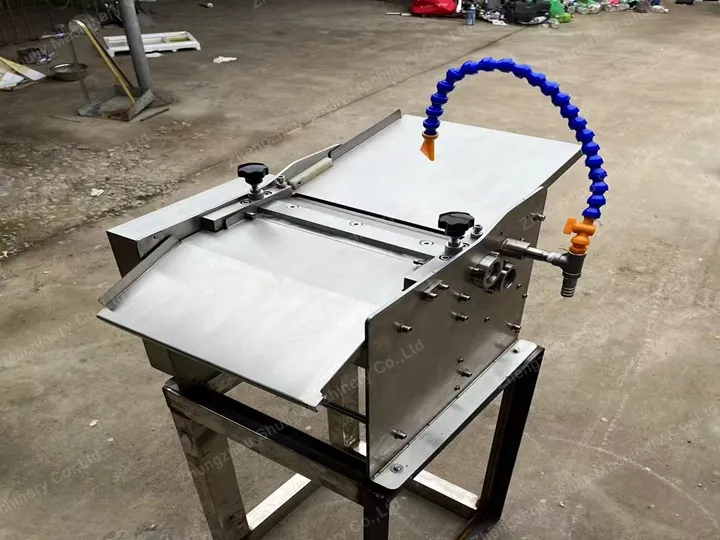

This commercial fish skin remover machine is constructed from stainless steel, featuring a stable structure and a long service life. The machine incorporates a waterproof switch design to ensure safe operation. Automated technology boosts skinning efficiency, reduces manual labor, and simultaneously increases output and productivity.

This fish fillet skinning machine processes 30 to 50 fish per minute, with adjustable skin removal thickness. It guarantees an efficient, clean skinning process while maximizing the integrity of the fillet, making it ideal for use in seafood processing, catering, and related industries.

Parameters of the fish skin removing machine

What kind of fish can be skinned?

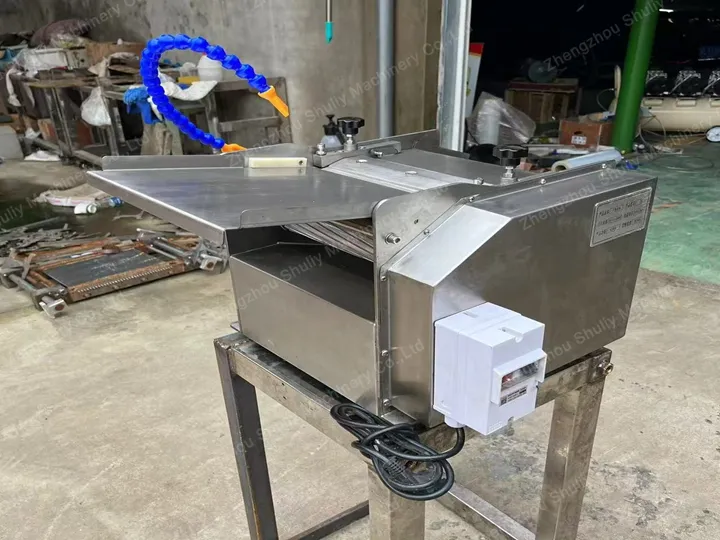

The commercial fish skinning machine is an electric machine specially designed to remove fish skin. This fish skin remover machine is applied after the fish scale removal machine, fish head and tail removal, and the fish belly splitting machine. The fish skin peeling machine can realize automatic peeling. It has a large production output, high peeling efficiency, and high yield.

The fish skinner machine is widely applied for peeling fish skins of cod, catfish, salmon, plaice, and other fish. The machine is widely used for peeling squid skins.

How does the fish skinning machine work?

Feeding and Conveying

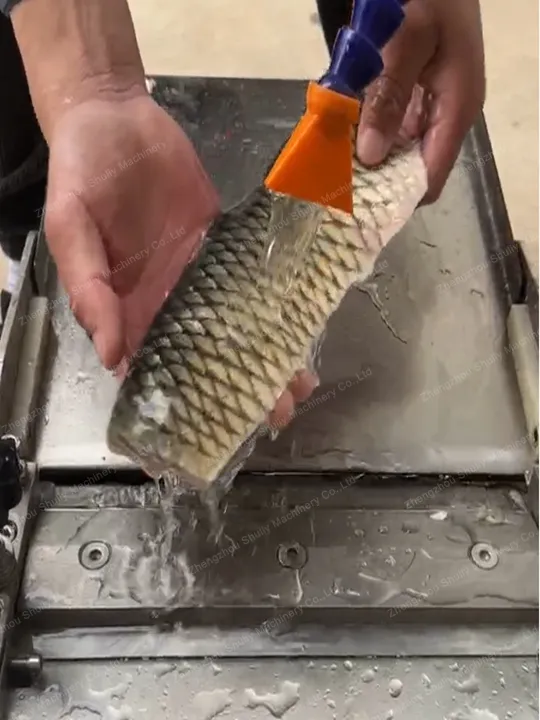

The operator places pre-processed fish fillets (skin side down) onto the stainless steel feeding tray at the front of the machine. The internal conveying mechanism smoothly transports the fillets into the fish skinning machine’s core skinning area.

Securing and Pressing

Once inside, pressure rollers above the fillet apply appropriate force to firmly press it against the toothed roller below. This ensures the skin adheres tightly to the roller, preventing slippage during skinning.

Cutting and Separation

This is the core step. The high-speed rotating serrated roller grips the skin, while a fixed specialized blade precisely wedges into the gap between the skin and flesh. Through the combined action of the roller’s traction and the blade’s cutting force, the skin is cleanly separated from the flesh.

Discharge and Separation

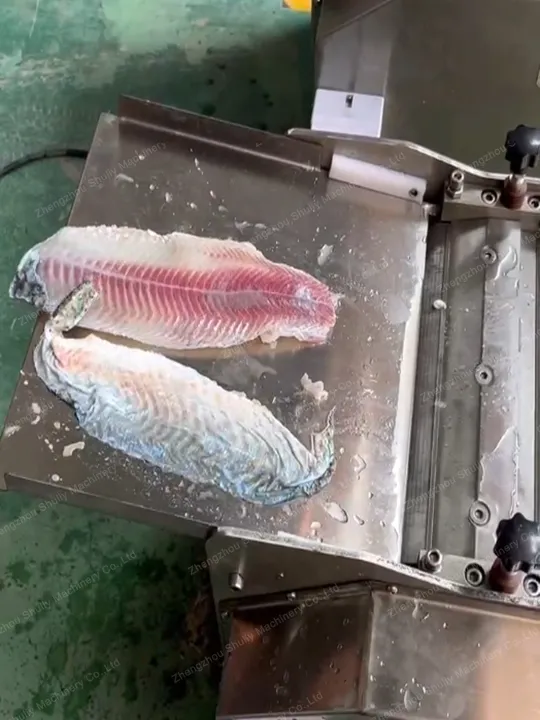

The separated skin is rolled onto the drum and discharged through the skin outlet on one side of the fish skin peeling machine. The clean fish meat is then discharged from the front discharge platform, completing the entire skinning process.

Auxiliary Function

The blue swivel spray pipe above the fish skin removing machine sprays water during operation. This rinses the blades and drum for hygiene, while also lubricating the skin to ensure smoother separation.

Features of the fish fillet skinning machine

• Suitable for processing various types of fish, such as squid, salmon, grass carp, catfish, and tilapia.

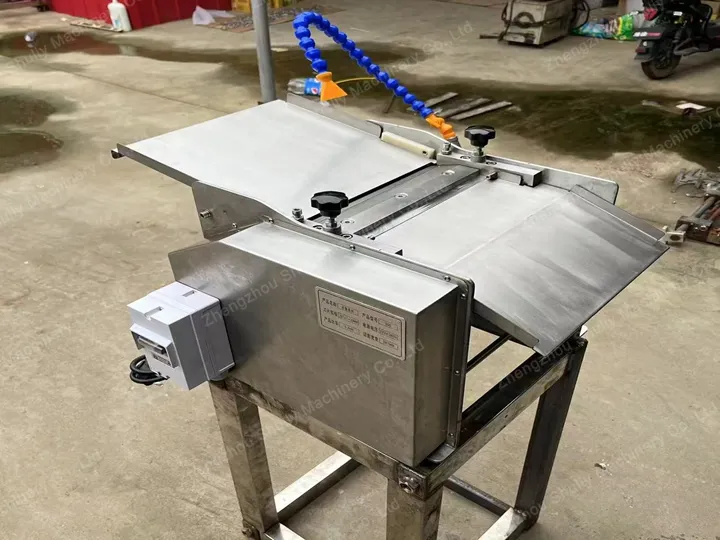

• The machine’s worktable and tool holder are both made of stainless steel, designed for easy disassembly and cleaning with straightforward installation.
• By adjusting the blade holder on the fish skinning machine, the thickness of the fish skin cut can be regulated.
• The machine’s control panel features a waterproof switch design for one-touch start-up, ensuring safe operation.
