Charcoal powder grinder

Charcoal powder grinder

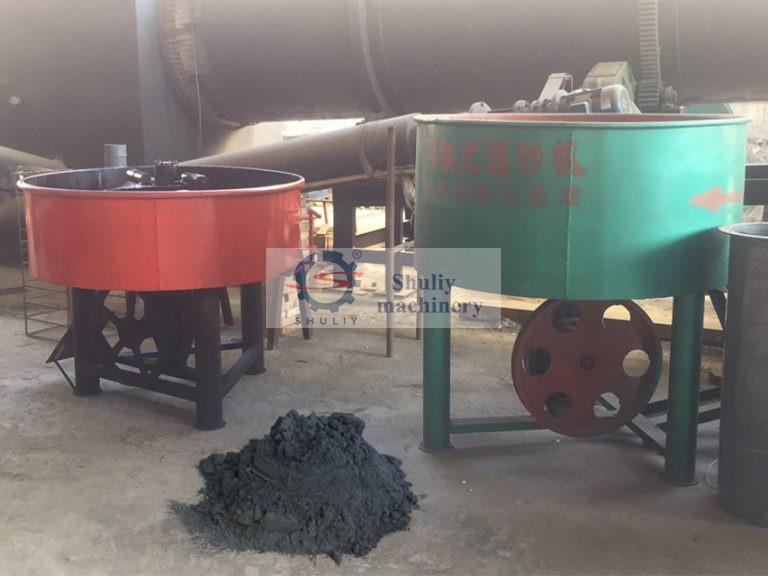

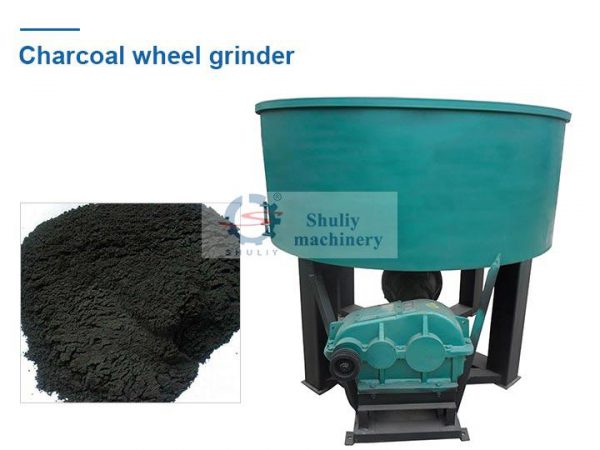

The lump charcoal grinder machine is also known as a charcoal briquettes grinder(charcoal powder crusher), is a kind of coal briquettes crushing equipment that is composed of grinding lead and rolling plate. In the mixing process, the charcoal grinder machine can not only stir but also crush, which can remove the air between the material particles, make the water of the mixed material even, the surface of the particles wet enough, and the mixing effect is good.

Description

The charcoal grinder machine is suitable for mixing granular materials, such as refractory mud, clay, fly ash, tailing sand, slag, charcoal powder, etc. Widely used in the production of unfired bricks, refractory materials, ceramics, building materials, and other industries.

The lump charcoal grinder machine also known as a charcoal grinder(charcoal powder crusher), is a kind of coal briquettes crushing equipment that is composed of grinding lead and rolling plate.

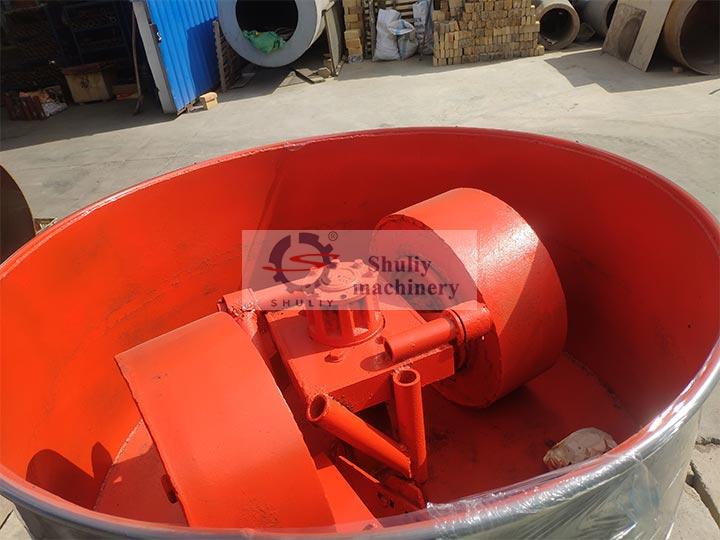

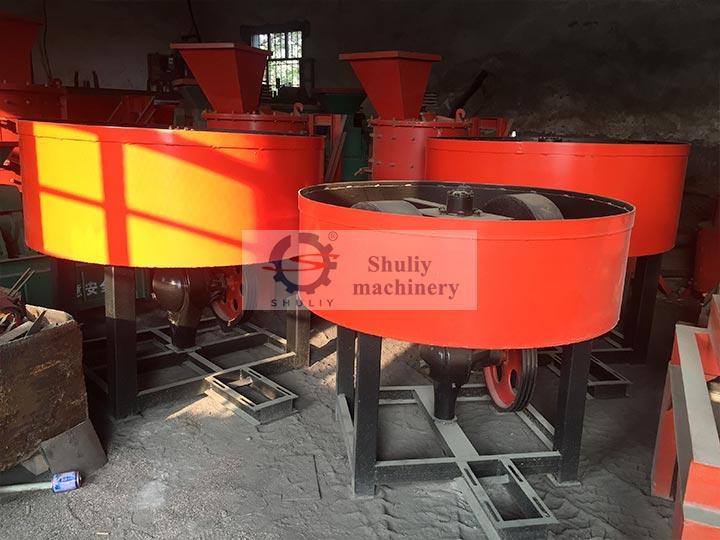

The wheel-type charcoal powder grinding machine has a pair of grinding blocks and a rolling plate. When crushing the lump charcoal & coal briquettes, it is crushed by the grinding block on a rotating rolling plate. There are sieve holes in the outer ring of the roller, and the crushed materials are discharged from the sieve holes.

The charcoal grinding machine is often used in charcoal briquette production lines. It is mainly used to further crush the large particles of coal powder and charcoal powder crushed by the crusher, and add the adhesive to mix evenly, and then send the stirred materials into the coal ball press machine, coal briquette machine, or shisha charcoal press machine to press the required finished products.

Reviews

There are no reviews yet.


Be the first to review “Charcoal powder grinder”

Diameter (mm) 1000 1200 1440 1600 1800 2000 2500
Capacity(Kg/h) 110 150 200 350 550 900 1700
Mix time( min) 3-8 3-5 3-5 2-5 3-5 2-5 2-5
Speed(r/min) 41 41/27 24 40 36 35 30
Power(Kw) 4 5.5 7.5 15 18.5 22 37
