Automatic continuous drying machine








Automatic continuous drying machine
Belt dryer, just as its name implies, the materials are transferred to the drying box by the band carrier. The hot air flows through the drying box, taking away the moisture of the material to achieve the drying effect.
The biggest advantage of a belt dryer is that it can realize automatic continuous drying. The belt dryer can do continuous feeding and discharge, while the whole dryer is in the open state. When the amount of drying material is large, the belt dryer is your best choice. It has a wide range of applications, especially suitable for the flake, strip, granular materials with good permeability.
- Description
- Reviews (0)
- Parameter
- Video
Description
The introduction of the belt dryer

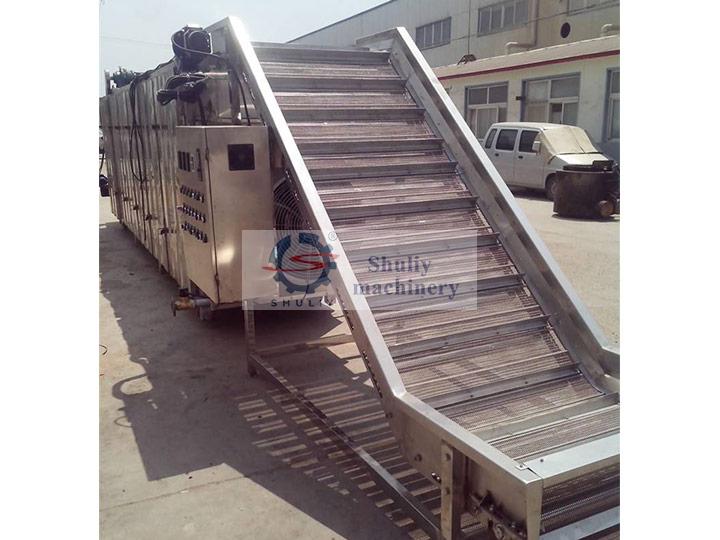

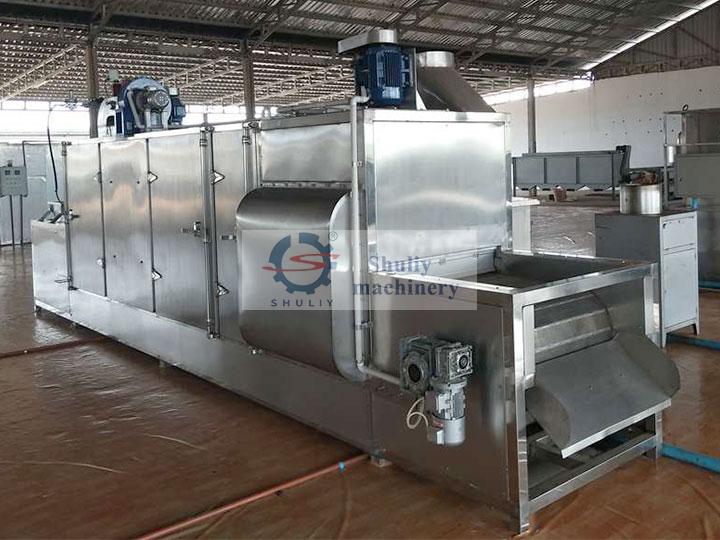

Belt dryer is a continuous dring equipment that uses steel mesh as the conveyor to transfer the material. Because the conveyor is reticular, it is most suitable for regular or irregular lumps. (such as coal, various mineral powders, food, vegetables, etc.)The belt dryer is composed of a feeding conveyor, main boxes, hot air fans, multi-layer belts, dehumidifying fans, and so on. There are baffles on both sides of the belt to prevent material leakage. There is a maintenance observation door outside the box to observe the drying of materials and the daily maintenance of equipment. The box wall is made of stainless steel which can effectively improve thermal efficiency.
The main principle is spreading the material on the net belt through the conveyor, drag the transmission device to move back and forth in the dryer, and the hot air flows through the material. Water vapor is discharged through the dehumidifying fan to achieve the purpose of drying.
Features of the mesh belt drying machine
- Continuous output with low energy, high efficiency, good drying effect;
- The fully automatic control system, easy to operate;
- Equipped with material baffle, detachable mesh belt, easy to clean and maintain. The machine is made of stainless steel, which is durable;
- A wide range of applications, using different mesh belt materials and layers to suit different materials;

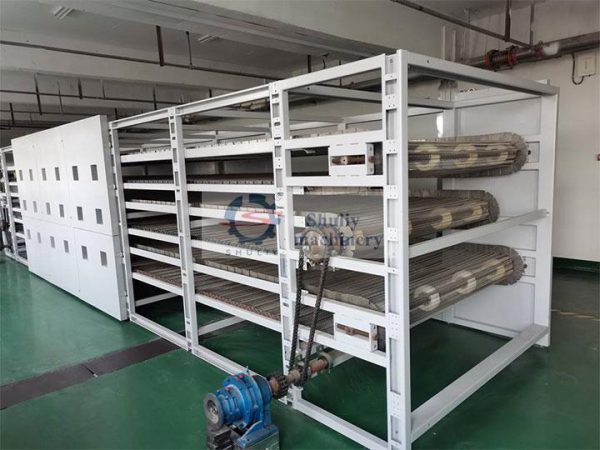

- The belt dryer adopts the principle of multi-layer utilization of hot air, which can effectively use hot air efficiency and increase the utilization rate of heat energy.
- The heat source can be customized according to customer requirements, including coal, oil, natural gas, biomass, electric heating, etc.
Be the first to review “Automatic continuous drying machine” Cancel reply
Model | SL-1.2-8 | SL-1.2-10 | SL-1.6-8 | SL-1.6-10 | SL-2-8 | SL-2-10 | SL-2-20 |
Units | 4 | 5 | 4 | 5 | 4 | 5 | 10 |
Belt width(m) | 1.2 | 1.2 | 1.6 | 1.6 | 2 | 2 | 2 |
Drying length(m) | 8 | 10 | 8 | 10 | 8 | 10 | 20 |
Material thickness(mm) | 10-80 | ||||||
Service temperature(°C) | 50-140 | ||||||
Steam pressure(Mpa) | 0.2-0.8 | ||||||
Steam consumption(kg/h) | 120-130 | 150-375 | 150-375 | 170-470 | 180-500 | 225-600 | 450-1200 |
Drying time(h) | 0.2-1.2 | 0.25-1.5 | 0.2-1.2 | 0.25-1.5 | 0.2-1.2 | 0.2-1.5 | 0.5-3 |
Drying intensity(kg/h) | 60-160 | 820-220 | 75-220 | 95-250 | 100-260 | 120-300 | 240-600 |
Total power | 11.4 | 13.6 | 11.4 | 13.6 | 14.7 | 15.8 | 36.8 |
Length(m) | 9.56 | 11.56 | 9.56 | 11.56 | 9.56 | 11.56 | 21.56 |
Width(m) | 1.49 | 1.49 | 1.9 | 1.9 | 2.32 | 2.32 | 2.32 |
Height(m) | 2.3 | 2.3 | 2.4 | 2.4 | 2.5 | 2.5 | 2.5 |
Total weight(kg) | 4500 | 5600 | 5300 | 6400 | 6200 | 7500 | 14000 |
