Grain dryer machine

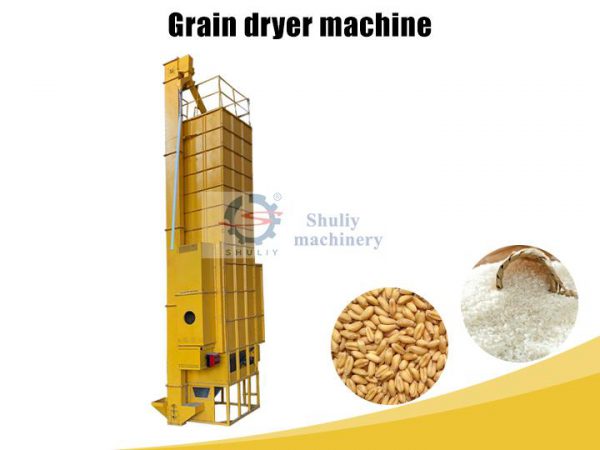

A grain dryer refers to the hot-air drying box with a rotary heating device, which can generate a large amount of hot air in a short time. It can kill insects through high-temperature treatment, and uniformly dry all kinds of grain such as corn, wheat, millet sorghum, etc.
Categories: Agricultural Equipment, Grains dryer machine
- Description
- Reviews (0)
- Technical Parameters
Description
Our grain dryer machine integrates low-flow, mixed-flow, frequency conversion technology as a whole with wide application, while the screen plate cross-flow dryer has a smaller drying range, and can not dry small particles such as rapeseed and millet. The high-temperature dryer can only dry corn. The total power of our low-temperature rice dryer is 7.6KW without an additional transformer, which is convenient to install.
The grain drying layer of the screen cross-flow rice dryer is only 0.9-1.4 meters. The grain is heated for a short time, which is not conducive to the evaporation of water. In addition, grain dryer machine mesh is easy to block. This results in uneven heating of the grain, slow precipitation, and increases the crushing rate.
The screens of third-generation cross-flow dryers are often blocked by grain bran, which causes bad ventilation, uneven drying, high drying costs, and poor grain quality.
Be the first to review “Grain dryer machine” Cancel reply
Model | 5HXG-10 | 5HXG-13 | 5HXG-15 | 5HXG-32 | |||||
Weight(kg) | 2900 | 3000 | 3200 | 7500 | |||||
Capacity | Rapeseed | The minimum-the maximum(kg) | 7500~10300 | 7500~13450 | 7500~14850 | 12000~31800 | |||
The minimum-the maximum(kg/h) | 473~1135 | 607~1456 | 675~1620 | 1000~3500 | |||||
Corn | The minimum-the maximum(kg) | 7500~10450 | 7500~13400 | 7500~16300 | 12000~32000 | ||||
The minimum-the maximum(kg/h) | 756~1261 | 971~1618 | 1080~1800 | 1000~3400 | |||||
Wheat | The minimum-the maximum(kg) | 7500~10450 | 7500~13350 | 7500~16300 | 12000~32000 | ||||
The minimum-the maximum(kg/h) | 315~756 | 405~971 | 450~1080 | 1000~3250 | |||||
Rice | The minimum-the maximum(kg) | 6500~8400 | 6500~10850 | 6500~15500 | 9000~30800 | ||||
The minimum-the maximum(kg/h) | 382~916 | 493~1184 | 548~1315 | 2600 | |||||
Size | Height(mm) | 7330 | 8450 | 9871 | 11430 | ||||
Length(mm) | 4288 | 4770 | |||||||
Width(mm) | 2738 | 5090 | |||||||
Fuel | Biomass (branch, rice bran, straw, etc.), anthracite, oil, gas, hot gas | ||||||||
Power | Conveying motor (kW) | 2.25kW(3HP) | 4.4kW | ||||||
Exhaust motor (kW) | 4.00kW(5HP) | 8kW | |||||||
Dust extraction motor (kW) | 0.25kW(1/3HP) | 0.25kW | |||||||
Total power | 6.5kW(82/3HP) | 12.65kW | |||||||
Property | Drying time/minutes | 47 | 57 | 63 | 69 | ||||
The time of discharging/minutes | 43 | 53 | 58 | 64 | |||||
Drying capacity(t·%/h) | 10-15 | 13 | 15-20 | 25-35 | |||||
Grain reducing rate(%/h) | Rice/wheat | 0.5—1.5or more | |||||||
Corn | 1.0—2.0or more | ||||||||
Grain reducing rate(%/h) | rapeseed | 0.2—0.7or more |
