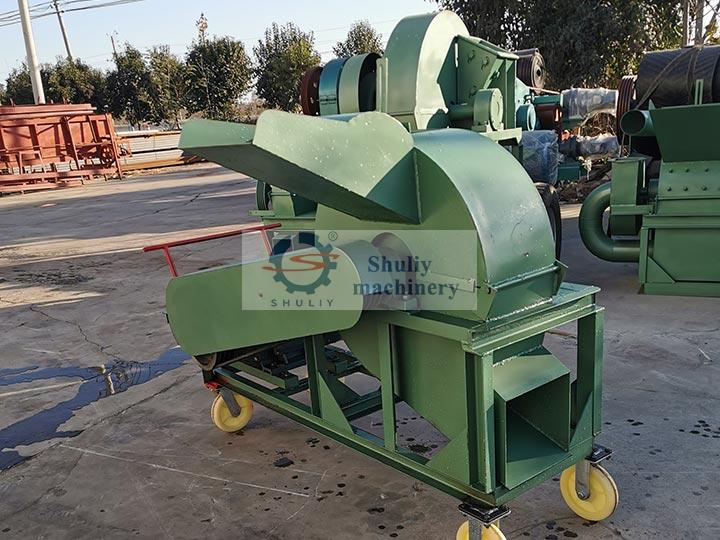

Straw branch shredder

Straw branch shredder

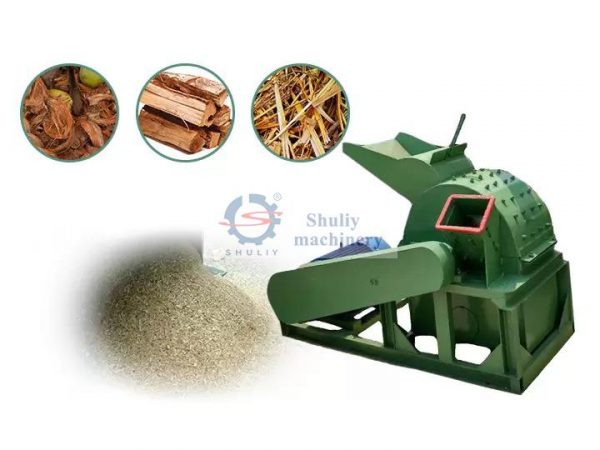

The main feature of this multifunctional wood crusher is that it has two (or three) inlets, so it is very suitable for crushing different materials, such as logs, branches, straw, rice husks, crop shells, etc.

Description

This is a new type of wood crushing equipment. The main feature of this multifunctional wood crusher is that it has two (or three) inlets, so it is very suitable for crushing different materials, such as logs, branches, straw, rice husks, crop shells, etc.

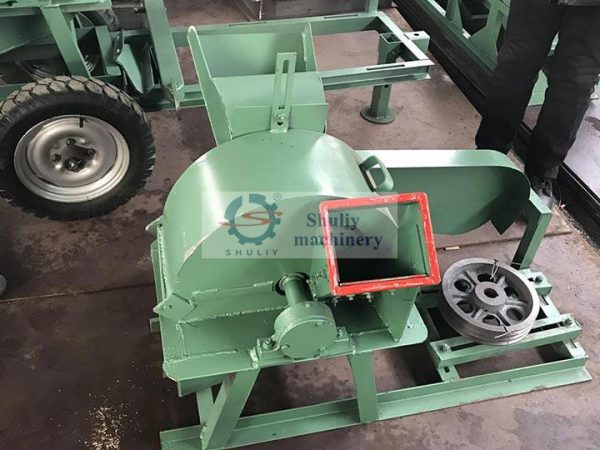

According to different customer needs, our multifunctional wood crusher is designed into many different specifications, such as diesel-driven wood pulverizer, mobile wood pulverizer, stationary wood pulverizer, electric pulverizer, small household wood pulverizer, and large wood shredders.

Although this multifunctional wood crusher has many styles, its main structure is roughly the same, mainly including the frame, the base, the log (branch) inlet, the straw (thin branch) inlet, the outlet, the fan, crushing room (knife disc, hammer, screen), etc.

In terms of working principle, the crushing chamber of a general wood pulverizer generally only has a set of independent cutting devices, namely a cutter disc, hammers, and a screen. The multifunctional wood shredder has two sets of independent cutting devices under different inlets. Therefore, it has a higher working efficiency.

Reviews

There are no reviews yet.


Be the first to review “Straw branch shredder”

Model SL-500 SL-600 SL-800 SL-1000 SL-1300 SL-1500
Feeding size(mm) 500*280 600*300 800*350 1000*450 1300*450 1500*450
Crushing chamber size(mm) 500*500 600*600 800*700 1000*800 1300*800 1500*800
Number of hammers(pcs) 30/20 40/30 50/30 66/48 72/54 90/72
Power(kw) 22-30 30-37 37-45 55-75 75-90 90-110
Fan power(Kw) without without 7.5 11 15 15
Capacity (Kg/h) 500-800 800-1200 1500-2000 2000-3000 3000-4000 4000-6000
