Wood shaving machine

Wood shaving machine

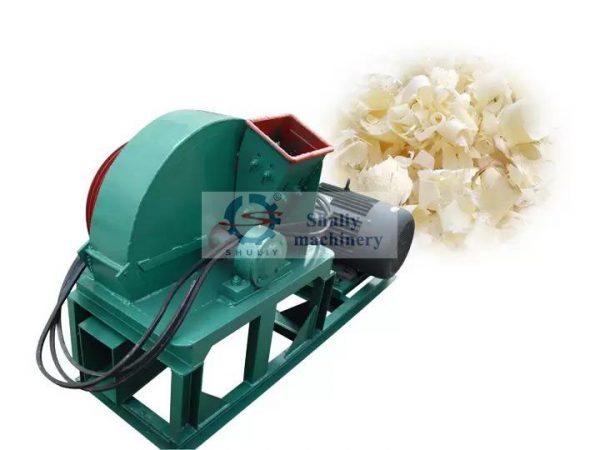

This commercial wood shaving machine is mainly used to cut all kinds of dry wood and branches into curled shavings with uniform thickness. This wood shaver is driven by electricity and has high working efficiency. Its processing volume can reach 300kg/h to 1500kg/h per hour.

Description

This commercial wood shaving machine is mainly used to cut all kinds of dry wood and branches into curled shavings with uniform thickness. This wood shaver is driven by electricity and has high working efficiency. Its processing volume can reach 300kg/h to 1500kg/h per hour.

The main structure of the wood shavings machine includes frame body, motor, pulley, cutter head, and so on. The cutter head of the machine is between 0.5-3mm. By adjusting the angle of the tip of the cutter head, the thickness of the finished wood shavings can be adjusted. Because wood shavings are a one-shot product, there are no screens and hammers inside this wood shaver.

When using the machine, first turn on the power and start the machine to keep the machine in continuous operation. Then put the wood or branches to be processed into the inlet of the wood shaving machine. After the wood enters the machine inlet, it will be quickly cut into uniform wood shavings, and then discharged through the outlet.

Reviews

There are no reviews yet.


Be the first to review “Wood shaving machine”

Model SL-420 SL-600 SL-800
Power(kw) 7.5 18.5 30
Capacity(kg/h) 300-500 600-1000 1000-1500
Inlet size(mm) 160*180 180*200 200*230
Knife quantity(pcs) 4 4 8
Cutter diameter(mm) 420 600 800
Main shaft rotary speed(r/min) 600
Weight(kg) 300 500 1000
Dimension(mm) 1200*500*700 1550*630*950 1850*800*1100
