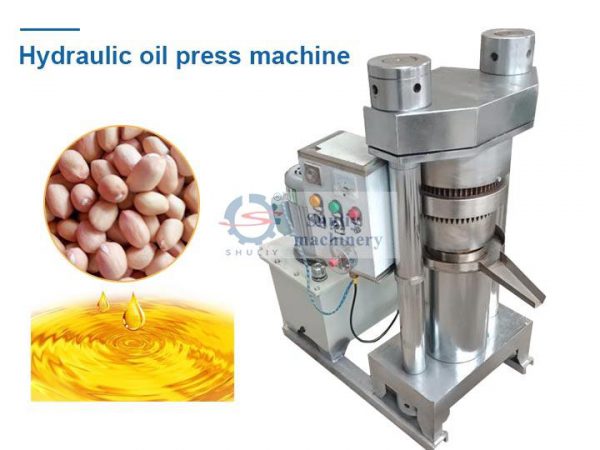

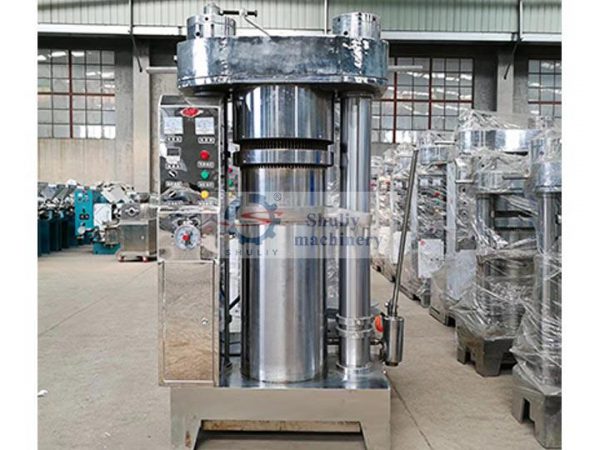

Hydraulic oil press machine
The automatic hydraulic cold pressed oil machine has simple oil extraction procedures, simple operation and high oil extraction efficiency. Besides, the machine occupies a small area and can press oil anytime and anywhere, making it an ideal oil press.
Categories: Food Processing Equipment, Edible oil press machine
- Description
- Reviews (0)
- Parameters
Description
The hydraulic oil press machine is also called cold oil presses. Because, during extraction oil, it mainly adopts the hydraulic oil level pressure to squeeze the oil, and it will not generate high temperature. The oil squeezed by the commercial hydraulic oil press machine can maintain the nutrition of the material and the color is brighter. The cold pressed oil is also purer.
Be the first to review “Hydraulic oil press machine” Cancel reply
Several raw materials oil extraction rate
Oil Plants | Time/time | weigh/time | 10-hour produce | Oil Yield |
Sesame | 5-8min | 6-9KG | 360-520KG | 42%-52% |
Camellia | 6-8min | 6-9KG | 260-320KG | 25%-35% |
Walnut | 6-8min | 6-9KG | 260-320KG | 50%-60% |
Pine Nut | 6-8min | 6-8KG | 310-610KG | 45%-60% |
Oil press machine technical parameter
Model | 6YZ-180 | 6YZ-230 | 6YZ-260 | TZY-320 |
Feeding Diameter | 180mm | 230mm | 260mm | 320mm |
Oil cake diameter | 180mm | 230mm | 260mm | 320mm |
Heating Range | 2kw | 2kw | 2kw | 2kw |
Heating coil control temperature | 70-100 | 70-100 | 70-100 | 70-100 |
Pressure | 55Mpa | 55Mpa | 55Mpa | 55Mpa |
Pressing Time | 7 min | 8 min | 10min | 10 Min |
Capacity(Per time) | 2-3kg | 7-8kg | 10-12kg | 15kg |
Capacity | 30kg/h | 50kg/h | 60kg/h | 90kg/h |
Motor | YZ90L-4/1.5kw | YZ90L-4/1.5kw | YZ90L-4/1.5kw | YZ90L-4/2.2kw |
Dimension | 500*650*1050 | 600*850*1360 | 650*900*1450 | 800*1100*1550 |
Weight | 750kg | 1050kg | 1400kg | 2000kg |
