Features at a Glance
The KMR-80 seedling nursery is more compact and covers a smaller space
Same function as the KMR-78-2, full automatic nursery, saving time and effort
The tray seeder can accommodate seedling trays with a maximum width of 320 mm

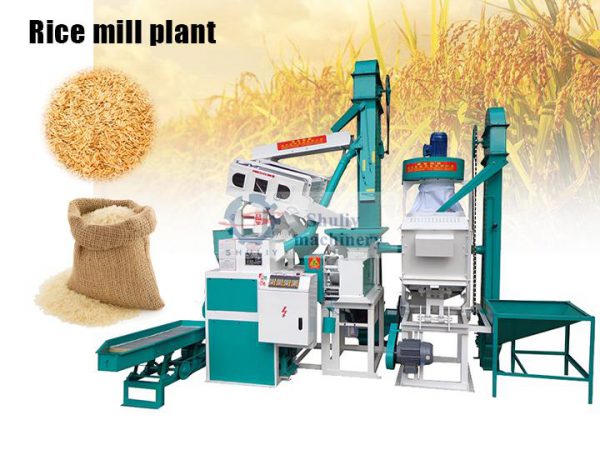

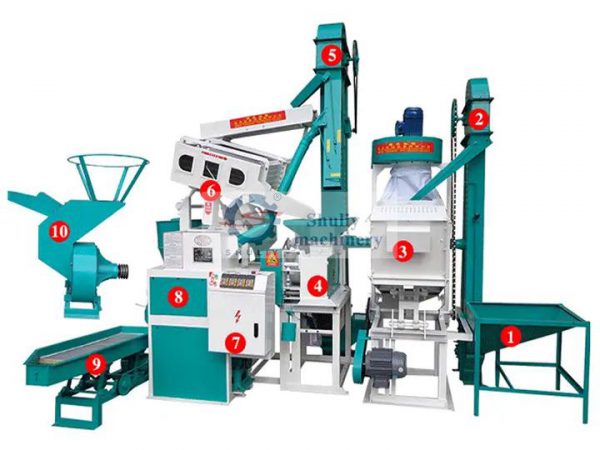

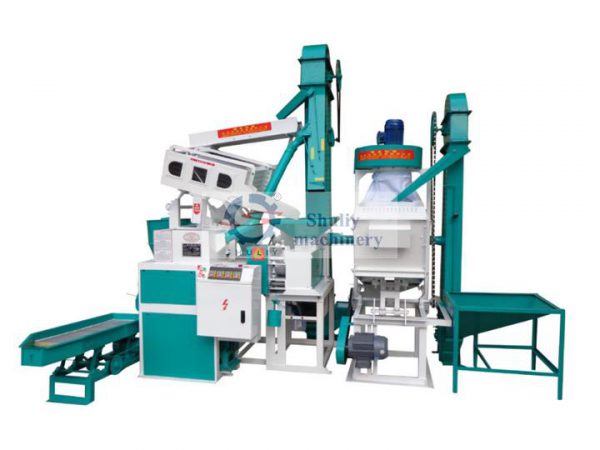

This is a standard version of rice mill plant. The standard type integrated rice mill plant is a most common one, and its capacity is 600-700kg/h. The integrated rice milling plant is mainly compose of feeding hopper, single hoist, rice destoner, rice husking machine, double hoist, gravity screen, electric cabinet, rice milling machine, rice husk crushing machine, hoist. All rice milling rate can reach 71%, and the processed rice is high quality. The working steps is like this, 1-2-3-5-4-5-6-8-10-11-12-9. Thanks to high milling precision, compact structure and excellent output, this series of integrated rice milling unit is pretty popular in the rice processing industries.
Model: 5HXG-15
Total Power: 6.5kW(82/3HP)
Capacity: 971~1618kg/h
Fuel: Biomass, oil, gas, hot gas
Weight: 3000kg
Size: 4288*2738*8450mm
Drying time: 57minutes
Drying capacity: 10-15(t·%/h)
Grain reducing rate: 1.0—2.0
The time of discharging: 53minutes
Model: 5TD-70
Power: 7.5kw,380v motor
Weight: 230kg
Spindle speed: 1200r/min
Size: 1340*2030*1380mm
Double fan: 2500r/min
Model: 5TD-125
Productivity: 1000-1500kg/h(wheat and rice),600–800kg/h(beans)
Matched power: 22 horsepower diesel engine or 11-13kw motor
Machine weight: 420kg
Spindle speed: 1050 r/min, 550 r/min (threshing beans)
Double fan speed: 2500 r/min
Machine size: 2500*1770*1550mm
Model: 9ZRF-3.8
Power: two-phase 4.5kW, three-phase 3kW
Weight: 93kg
Blade length: 220*70*6mm
Capacity: 3800kg/h
Blade quantity: 5
