Semi-automatic peanut butter filling machine

Semi-automatic peanut butter filling machine

Peanut filling machine is an semi-automatic equipment for peanut butter packaging and sealing in the food industry. But its use has extended to many products as well. Apart from peanut butter, the peanut butter filling machine is also suitable for packing sesame, jellies, and other paste. Our company has specialized in making small and medium-sized machinery for years. Our peanut butter production line has matured so far. We provide our customers with high-quality and advanced products. Compressed air drives the peanut filling machine made of 304 stainless steel. Packaging container varies from bags, bottles, cans, pouch and stand-up pouch.

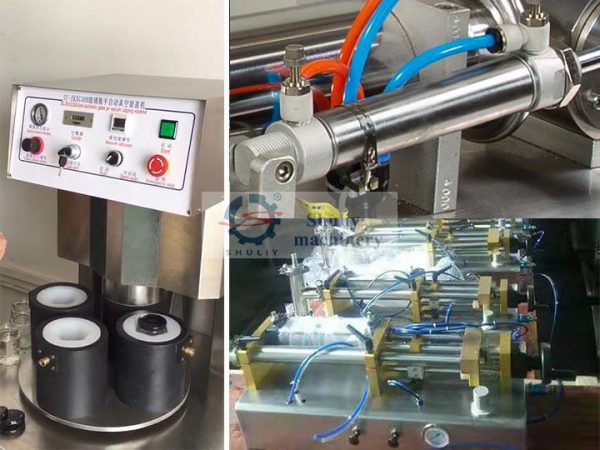

Paste filling machines are suitable for filling paste, jellies and jams, especially highly viscous paste. This filler employs a volumetric method to measure and adjust the paste quantity at a time. Therefore, it’s also a piston filling machine. This machine is with a self-priming cylinder where a piston exists and runs. The piston is playing within the cylinder at a moderate speed. The diameter of the piston and the way it runs from head to foot determines filling material quantity and volume. So that volume remains constant and stable every time. The piston moves back and forth and paste will be filled into containers.


There are no reviews yet.

Be the first to review “Semi-automatic peanut butter filling machine”

Model TZ-1
Voltage(V) 220V/50HZ 110V/60HZ
Air Pressure(MPa) 0.4-0.6
Weight(Kg) 50
Driven Type Eletric
Filling Speed(boins/Min) 20-60
Filling Range(ml) 300-1000
Filling Error(%) ≤±1%
