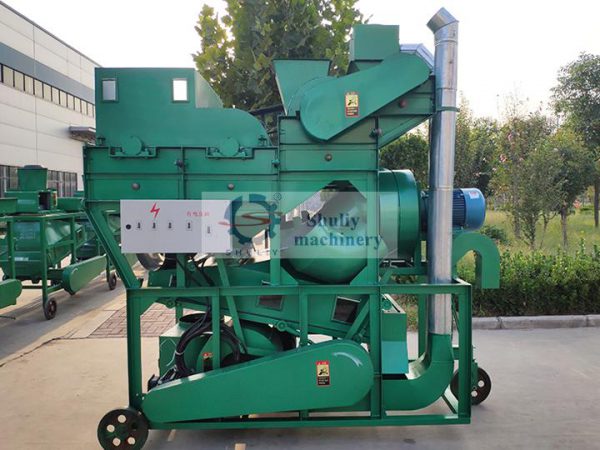

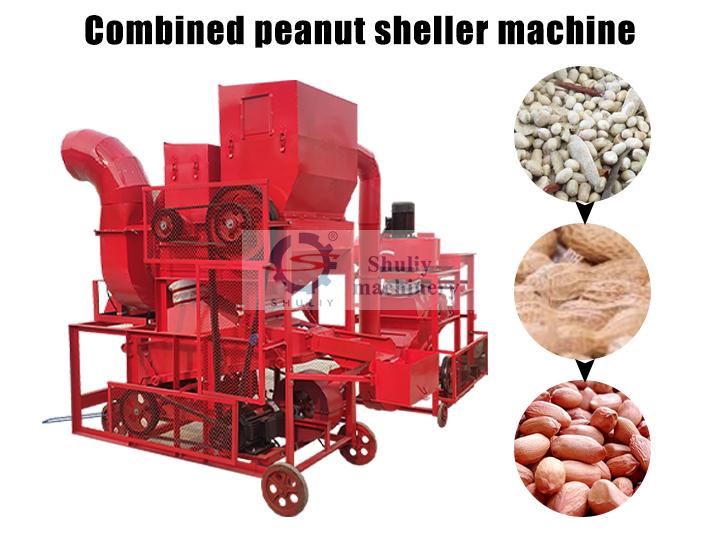

Combined peanut sheller machine

Combined peanut sheller machine

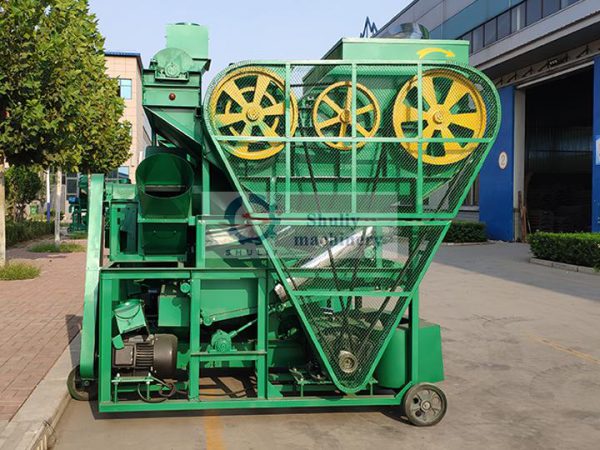

Combined peanut sheller machine is used to remove the shell of the peanut to get clean peanut kernels. Unlike traditional peanut sheller, it matches with peanut cleaning equipment before shelling, greatly improving the cleaning rate. Its capacities range from 700kg/h to 8000kg/h, and its high shelling rate and cleaning rate make it famous among farmers. So, many people also call it a large output peanut sheller machine.

Description

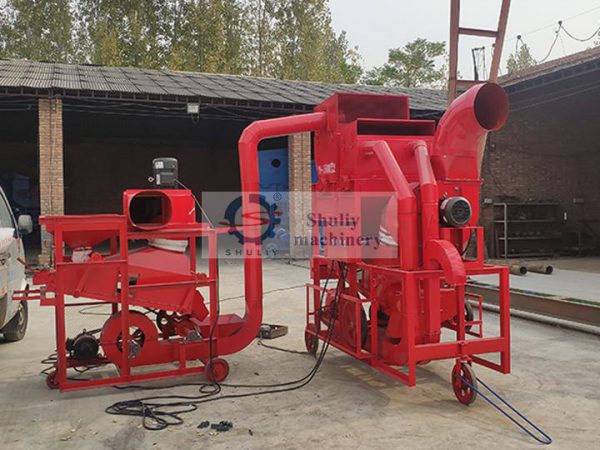

We have four models of large-yield peanut shellers, and their output is different. They are TY-1500, TY-16000, TY-20000, TY-3500. These machines use the principle of hierarchical peeling, first peeling large peanuts, then peeling small peanuts. This improves the peeling rate and reduces the damage rate.
The main components are the mainframe, the feeding hopper, the screen with the left and right spiral plates, and the rollers, conveying lifter, pipes, etc, of which the number of drums and screens can be customized according to your requirements.
The combination of a closed screen box and a dedicated fan achieves suspension sorting. The movable screen on the side is a historic breakthrough for the combined peanut shelling machine. The stem removing system setting reduces functional consumption, protecting the internal structure of the sheller, and accelerating transmission efficiency.
At the same time, this peanut sheller is simpler in structure and more environmentally friendly and is the ideal equipment for peanut processing farmers.

Reviews

There are no reviews yet.


Be the first to review “Combined peanut sheller machine”

Model TY-1500 TY-16000 TY-20000 TY-3500
Shelling rate >98 >98 >98 >98
Cleaning rate >98 >98 >98 >98
Capacity 700-800 kg/h 2500-3500 kg/h 5000-8000 kg/h 1500-2200kg/h
Breakage rate <0.5% <0.5% <0.5% <0.5%
Loss rate <0.5% <0.5% <0.5% <0.5%
Humidity 10 % 10 % 10 % 10 %
Shelling motor 1 5KW

3KW

11kw

11kw

4kw

15kw

15kw

4kw

4kw

5.5kw

Cleaning motor 2 2KW 5.5kw

5.5kw

5.5kw

5.5kw

3kw
Total weight 520kg 2300kg 2750kg 1000kg
Dimension 1500*1050*1460mm 2650*1690*3360mm 2750*1800*3360mm 2500*1200*2450mm
