Peanut shelling machine

Peanut shelling machine

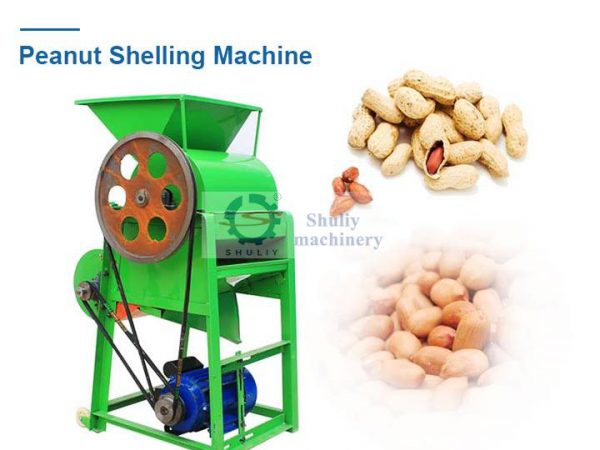

Peanut sheller is a machine that takes off the peanut shell by rotating the body at high speed and keeps the peanut kernels intact. Peanut sheller consists of frame, fan, rotor, hairdryer, single-phase motor, the screen mesh (of two sizes), the feeding hopper, the vibrating screen, the triangular belt wheel and transmission triangular belt.

Description

Peanut sheller takes off the peanut shell by quickly rotating the body and keeps the peanut kernels intact. During the working process, peanuts firstly enters the feeding hopper quantitatively, uniformly and continuously. The peanut is smashed by repeated blowing, friction and collisions of the rotor. Peanut kernels and the broken peanut shells under the rotation of the rotor of wind pressure and blow, through a certain aperture sieve (peanut threshing with big hole mesh for the first time, after cleaning the small fruit skin changing sieve into a small hole on the second shell), then, peanut shells, particles are rotating fan blow force, the lightweight of peanut shell was blown out of the body, peanut kernels by a screening of vibrating screen to achieve the purpose of cleaning.

Reviews

There are no reviews yet.


Be the first to review “Peanut shelling machine”

Mode SL-400B SL-800C SL-1500C SL-3000D SL-3000C
Capacity 400kg/h 800kg/h 1500kg/h 3000kg/h 3000kg/h
Shelling Rate ≥95% ≥98% ≥98% ≥99% ≥98%
Breaking Rate ≤5% ≤4% ≤4% ≤5% ≤4%
Cleanness Rate ≥97% ≥97.5% ≥97.5% ≥99% ≥97.5%
Losing Rate ≤ 0.5% ≤ 0.5% ≤ 0.5% ≤ 0.5% ≤ 0.5%
Power 2.2KW 4.0KW 7.5KW 7.5KW 11KW
weight 37KG 330KG 700KG 1080KG 850KG
Out Size   (mm) 550*550*900 1520*1060*1660 1960*1250*2170 2540*1360*3000 2150*1560*2250
