Dry ice processing plant

Dry ice processing plant

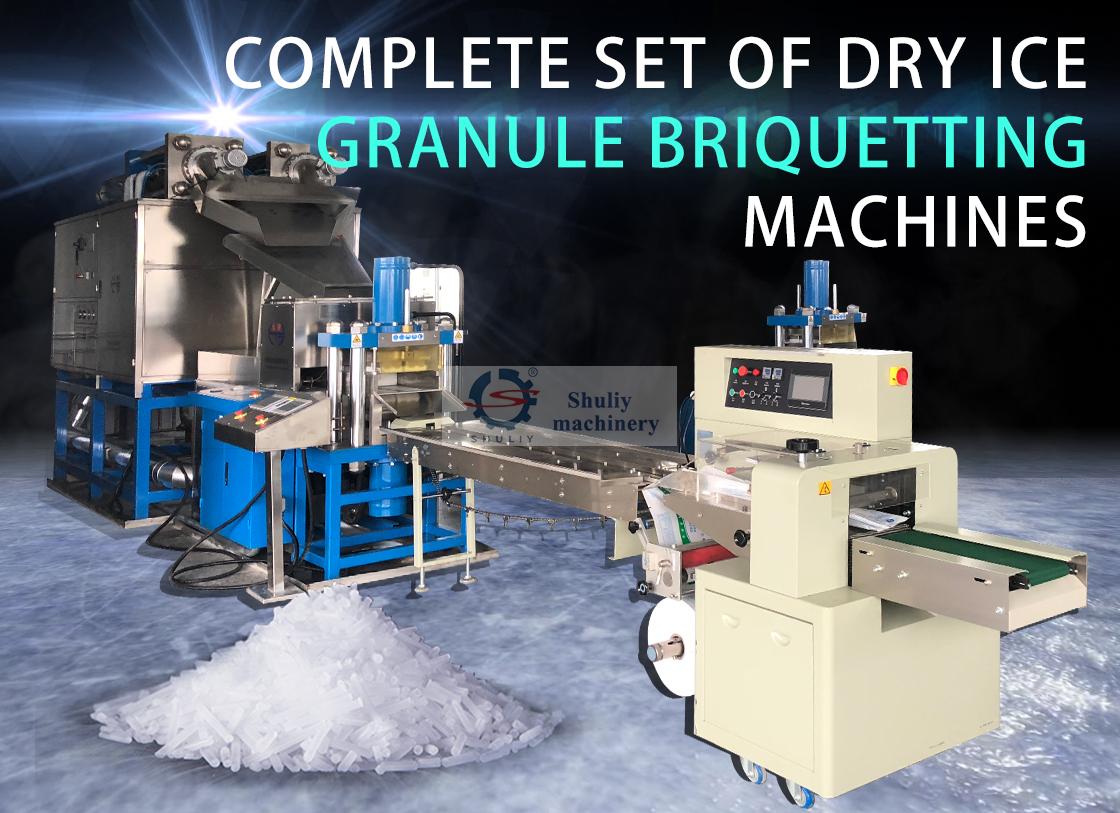

The complete set of dry ice pellets briquetting machines, namely the dry ice processing plant, mainly include the dry ice pellet machine, dry ice blocks briquette machine, and other supporting devices, which are mainly to turn the liquid CO₂ into dry ice blocks in large scale.



This complete set of dry ice processing machines is a small dry ice production line and it can be customized according to different requirements of the customers. The dry ice granular machine also can be used alone to make dry ice granules in the dry ice cleaning industry.

This is a set of dry ice processing machines to make small dry ice blocks from liquid CO₂, which has the great advantages of large output, high automation, performance stability, small area occupation, space-saving, high production efficiency, high density of finished dry ice blocks. This set of machines is very useful for the user who wants to make dry ice blocks for commercial purposes and has great market demand.


There are no reviews yet.

Be the first to review “Dry ice processing plant”

Model SL-300-2-SL-1800 SL-300-4-SL-4000
Motor power(kW) 26 48
Dry ice block size(mm) Φ3-Φ19 Φ3-Φ19
4-95×95×(10-60) 2-125×105×(10-60) 9-95×95×(10-60) 4-125×105×(10-60)
Output (kg/h)
Min  Max
400 540 400 540 900 1080 900 1080
The density of the dry ice block(t/m³) ≥1.50 ≥1.50
CO₂ transformation rate ≥42% ≥42%
Liquid inlet pressure(Mpa) ≤2.1 ≤2.1
Liquid inlet diameter(mm) DN20 2-DN20
Exhaust pipe diameter(mm) 2-DN70 4-DN70
Fuel tankage(L) 410 780
Overall dimension(cm) 490×140×275 490×270×275
Weight(kg) 3500 7200
