Continuous charcoal dryer

Continuous charcoal dryer

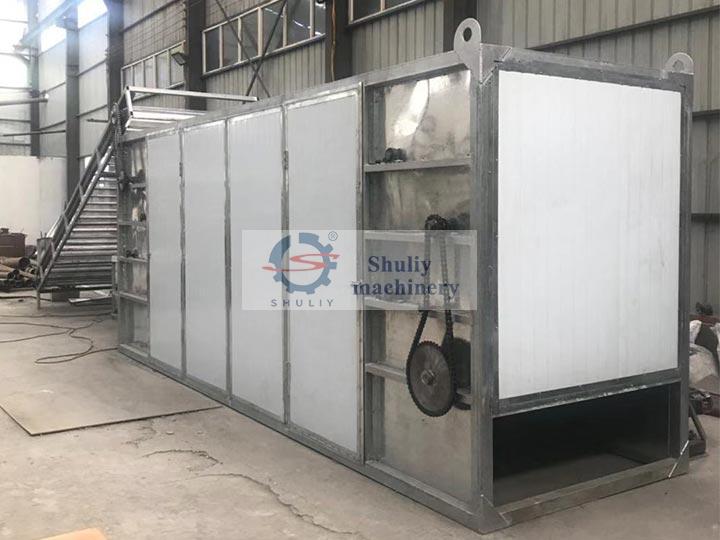

The continuous charcoal dryer is a piece of ordinary continuous drying equipment. It is widely used in the chemical industry, foodstuff industry, pharmaceutical industry, construction materials industry, electronic industry, and so on.

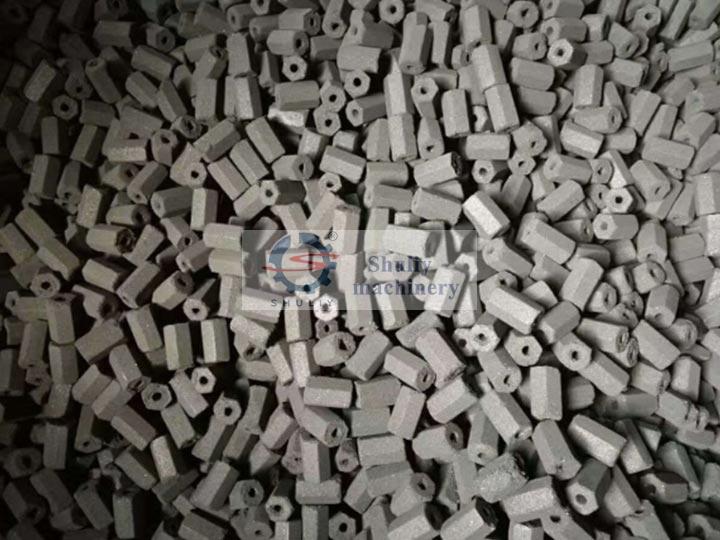

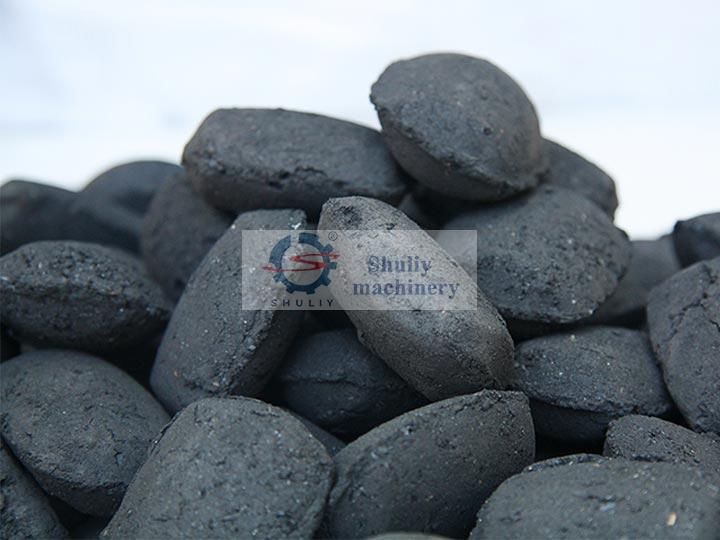

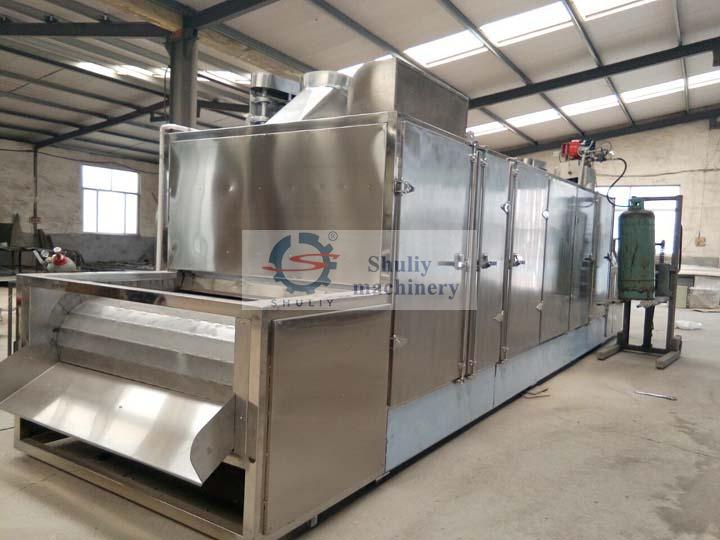

The continuous charcoal dryer machine is also called the mesh belt drying machine, which can be used to dry the charcoal briquettes like shisha or hookah charcoal, and barbecue charcoal which are produced by the charcoal briquette machine or the charcoal ball press machine.

The raw material can be spread on the conveyor belt through a suitable mechanism such as a star distributor and vibrating belt. The conveyor belt will pass the channel that consists of one or several drying units.

Each drying unit is equipped with an air heating and circulating system, and each drying unit has one or several dehumidification systems. The hot air will move up and down for drying the materials at an even speed when the conveyor belt passes through.


There are no reviews yet.

Be the first to review “Continuous charcoal dryer”

Model SL-6 SL-8 SL-10 SL-12 SL-16 SL-20 SL-24 SL-30
Width of Belt 600mm 800mm 1000mm 1200mm 1600mm 2000mm 2400mm 3000mm
Length of Drying Section 6-12 6-12 6-16 8-16 8-22 10-26 12-30 12-40
Length of Feeding Section 1 1 1 1 1 1.5 1.5 2
Length of Transmitting Section 1 1 1 1 1 1.5 1.5 2
Drying Area 3.6-36㎡ 4.8-48 ㎡ 6-80 ㎡ 7.2-96㎡ 12.8-105.6 ㎡ 20-260㎡ 28.8-360 ㎡ 36-600 ㎡
Unit Number 1-5
Interlamellar Spacing 400-600 mm
Carrying Capacity 90-200 kg/㎡
Temperature carbon steel≤400 C°, stainless steel≤600 C°
Heat source hardwood, electricity, steam
Running speed 0.06-1m/min
Transmission powder 1.1-2.2 kW 1.1-2.2 kW 1.1-2.2 kW 1.1-3kw 1.5-3 kW 1.5-4 kW 3-7.5 kW 5-11 kW
Matching equipment conveying equipment, air heating furnace, dust removing equipment, draught fan, etc
