Wood pallet block making machine

Wood pallet block making machine

Wood pallet block machine uses sawdust, wood shavings, etc. as raw materials, is dried by a dryer, and then mixed with glue to form woodblocks. This kind of compressed wood block is beautiful and clean and does not drop slag. These sawdust pallet blocks have good water resistance and strong nailing force. Commercial wood pallet block making machines are often used in wood processing plants, and the processed finished products are mainly used to make foot blocks of various wooden pallets.


There are many raw materials used to process wooden pallet blocks, usually various waste biomass materials. Most branches, sawdust, wood processing leftovers, wood shavings, rice husks, straw, pine, hardwood, logs, etc. can be used to process wooden blocks. These raw materials need to be made into sawdust using a wood shredder before processing sawdust pallet blocks.

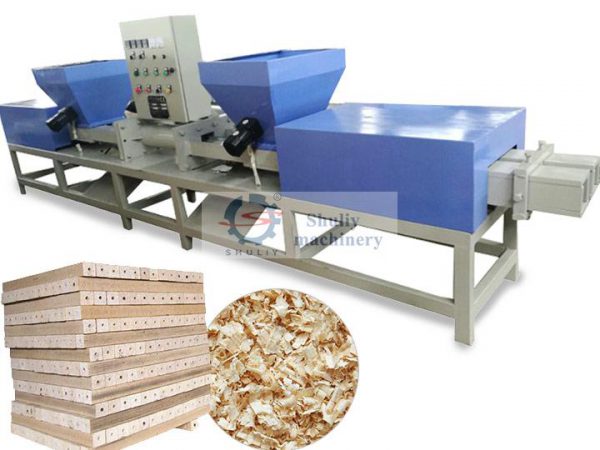

The wood pallet block machine is the main equipment for processing wooden cubes and tiles. The equipment usually has two reverse feed inlets for holding sawdust. In addition, the woodblocks making machine has four outlets, which are mainly for extruding pallet blocks.

The sawdust pallet blocks making machine has the function of electric heating. The heating plate is continuously heated during the extrusion of wood blocks so that the lignin in the sawdust is heated to melt and adhere to each other.

The pallet blocks made in this way will be more solid and denser. The export mold of the wood pallet block machine can be replaced with molds of different sizes, so the equipment can produce wooden blocks of different specifications.

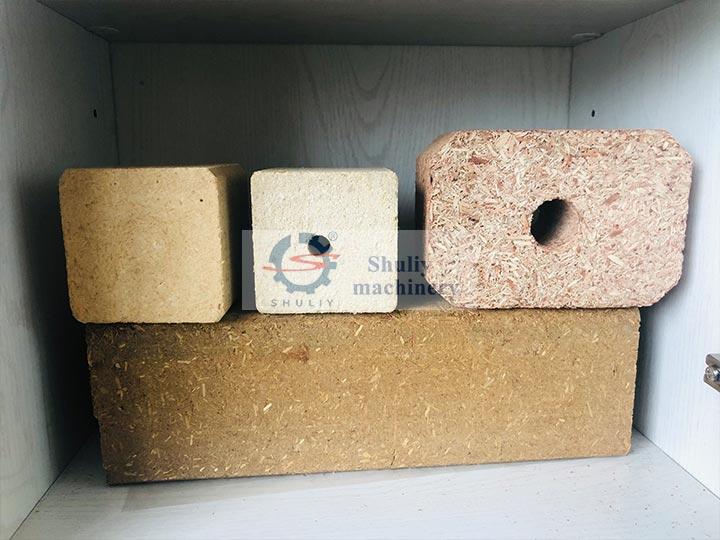

The length of pallet blocks processed by a commercial wood pallet block machine is usually 1200mm. There are usually many cross-sectional dimensions, mainly determined by different molding dies. Common sizes that can be processed are 75*75mm, 80*80mm, 90*90mm, 90*120mm, 100*100mm, 100*120mm, 100*140mm, 100*150mm, 140*140mm, etc. We can also customize the size of pallet blocks according to customer needs.


There are no reviews yet.

Be the first to review “Wood pallet block making machine”

Model Power Capacity Dimension Weight
SL-75/2 15KW 3.5m³/d 75*75*1200mm 1500kg
SL-90/2 15KW 4m³/d 90*90*1200mm 1800kg
SL-100/2 18KW 5m³/d 100*100*1200mm 2000kg
SL-120 15KW 3.5m³/d 100*120*1200mm 1500kg
SL-145 18KW 3.5m³/d 145*145*1200mm 1800kg
